Infrared Thermometer Vs Thermal Camera Electricians Uk

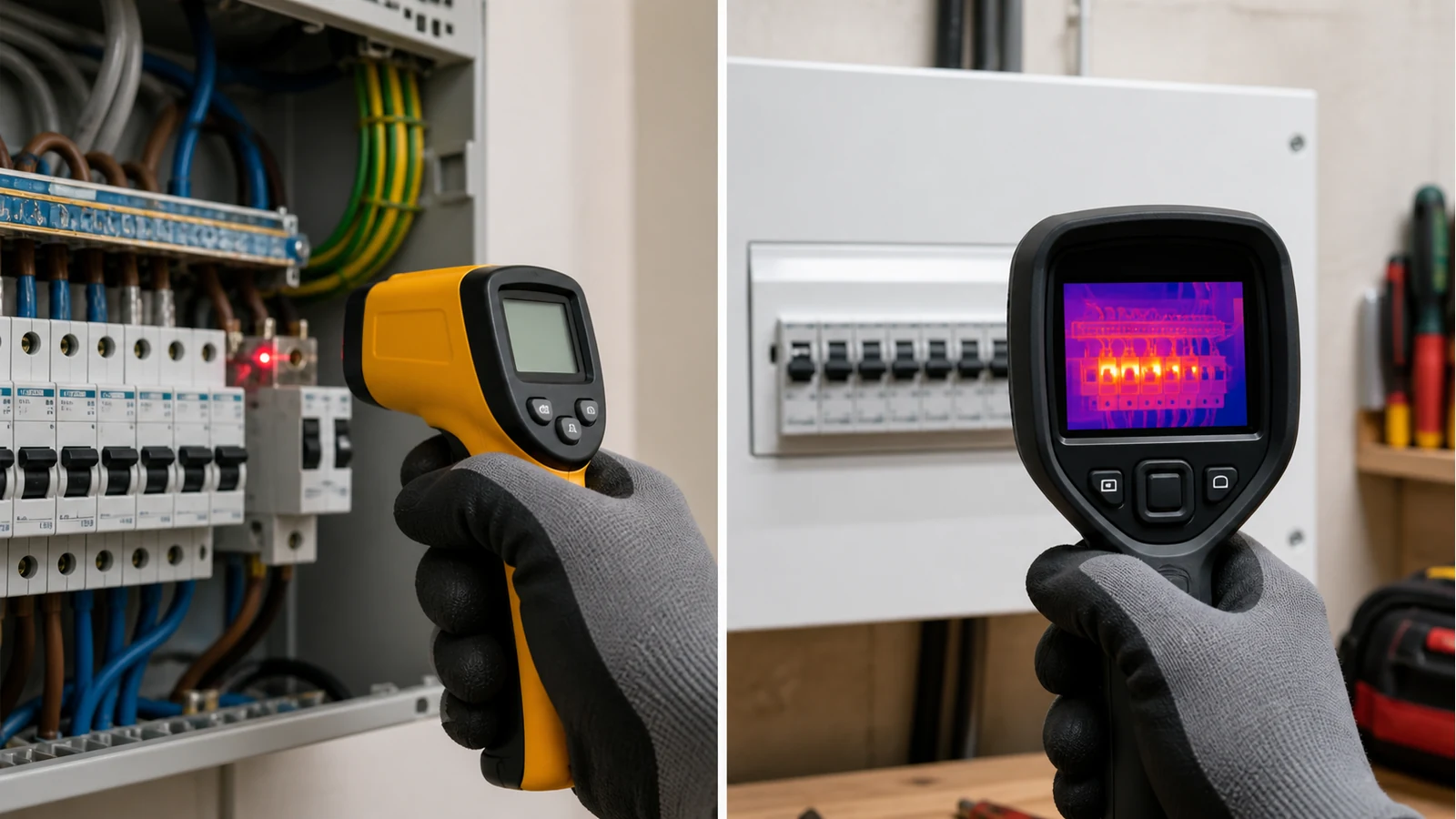

Direct answer: an infrared thermometer gives a single spot reading; a thermal camera shows the temperature pattern across a consumer unit or distribution board. For UK electricians, the camera is usually better for hotspot triage and client evidence, while the spot tool remains useful for quick checks where a single target is known.
The difference on a board
On an intermittent trip or suspected loose connection, the problem is often not the one terminal you choose first. A spot IR thermometer can miss the neighbouring component because it asks one question at a time. A thermal imager shows the pattern, so an unusual terminal, breaker or busbar area is harder to overlook. Elec-Mate thermal camera guide for electricians discusses resolution and pattern recognition as key buying considerations for electricians.
Comparison for working electricians
| Need | IR thermometer | Thermal camera |
|---|---|---|
| Large-board scan speed | Slow, point by point | Fast pattern view |
| Client explanation | Number without location context | Image can show which component is suspect |
| Documentation | Manual note-taking | Image file can support a report |
| Cost and simplicity | Lower cost and simple | Higher cost and needs correct interpretation |
| Safety boundary | Neither replaces competent testing | Neither replaces competent testing |
Why outline matters
When a non-technical client sees a colour-only thermal image, they may not know which breaker or terminal they are looking at. FLIR explanation of MSX explains MSX as adding visible edge detail to help identify objects; it does not turn a low-detail thermal sensor into a higher-resolution one. UK trade coverage has also shown compact thermal imagers being used on consumer units to demonstrate heat points to clients; see Professional Electrician compact thermal imager field test.
Safety and compliance boundary
Thermal screening can support triage, prioritisation and visual evidence. It does not prove BS 7671 compliance, replace safe isolation, or remove the need for competent electrical inspection and testing. Treat any suspicious heat pattern as a reason to investigate under proper electrical procedures, not as permission to work live casually.
When a product CTA is fair
If you already sell inspection evidence packs or regularly need report-ready images, a compact thermal imager may fit the workflow. In that situation only, review the same-site compact thermal camera detail page and ask for the technical data, image export and warranty wording you need before purchase.
